What Does an EGR Valve Do? A Complete Guide 2025

Mark Reynolds
Mark Reynolds
8 Min Read
valvel egr

Introduction

The Exhaust Gas Recirculation (EGR) valve is a crucial component in modern vehicle engines, designed to improve fuel efficiency and reduce emissions. If you’ve ever had engine performance issues or seen a Check Engine Light related to emissions, the EGR valve might be the culprit. But what exactly does an EGR valve do, and why is it so important? In this guide, we’ll break down the function of the EGR valve, its benefits, and signs of a failing valve.

Contents
Table of ContentsIntroductionWhat Is an EGR Valve?How Does an EGR Valve Work?Benefits of an EGR ValveSigns of a Failing EGR ValveHow to Diagnose and Fix a Bad EGR ValvePreventative Maintenance TipsConclusion

What Is an EGR Valve?

The EGR valve is a part of your car’s emission control system. It works by recirculating a portion of exhaust gases back into the engine’s intake manifold, reducing nitrogen oxide (NOx) emissions. This process helps in lowering combustion temperatures, which in turn minimizes harmful pollutants.

📌 Key Functions of an EGR Valve:
✔️ Reduces NOx emissions
✔️ Lowers combustion temperatures
✔️ Improves fuel efficiency
✔️ Helps meet environmental regulations

How Does an EGR Valve Work?

The EGR system operates by opening and closing the EGR valve at specific engine conditions. When the engine is running at low speed or idling, the valve remains closed to allow full combustion efficiency. However, at higher speeds, the valve opens, allowing a controlled amount of exhaust gases to mix with fresh air in the intake.

This recirculation dilutes the oxygen concentration in the air-fuel mixture, preventing extreme combustion temperatures and reducing the formation of nitrogen oxides.

🚗 Types of EGR Valves:
🔹 Vacuum-Controlled EGR Valves – Found in older vehicles, controlled by vacuum pressure.
🔹 Electronic EGR Valves – Common in modern cars, operated by the vehicle’s ECU (Engine Control Unit).

Benefits of an EGR Valve

Having a properly functioning EGR valve brings several advantages to your vehicle:

✅ Emission Reduction – The primary benefit is the reduction of harmful NOx emissions, which contribute to smog and air pollution.
✅ Improved Fuel Efficiency – By reducing combustion temperatures, the EGR valve can help improve fuel economy.
✅ Prevents Engine Knock – High combustion temperatures can cause premature ignition, leading to engine knocking. The EGR valve prevents this issue.
✅ Extends Engine Life – Lower temperatures reduce engine wear and tear, prolonging the lifespan of engine components.

Signs of a Failing EGR Valve

Over time, carbon buildup and mechanical wear can cause the EGR valve to malfunction. Here are the most common symptoms of a failing EGR valve:

🚨 1. Check Engine Light On
A faulty EGR valve can trigger the Check Engine Light (CEL), indicating emissions-related problems.

🚨 2. Rough Idling and Stalling
If the valve is stuck open, too much exhaust gas recirculation can disrupt the air-fuel ratio, causing rough idling or even engine stalling.

🚨 3. Decreased Fuel Economy
A malfunctioning EGR valve can cause poor fuel efficiency due to improper air-fuel mixture, leading to increased fuel consumption.

🚨 4. Increased NOx Emissions
If the valve is stuck closed, excessive NOx emissions can lead to failing emissions tests and increased environmental pollution.

🚨 5. Reduced Engine Performance
Sluggish acceleration, hesitation, and loss of power are common symptoms when the EGR valve is not functioning correctly.

How to Diagnose and Fix a Bad EGR Valve

If you suspect your EGR valve is failing, follow these steps to diagnose and fix the issue:

🔎 Step 1: Scan for Error Codes
Use an OBD-II scanner to check for diagnostic trouble codes (DTCs) related to the EGR system, such as P0401 (EGR Flow Insufficient) or P0402 (EGR Flow Excessive).

🔎 Step 2: Inspect the EGR Valve

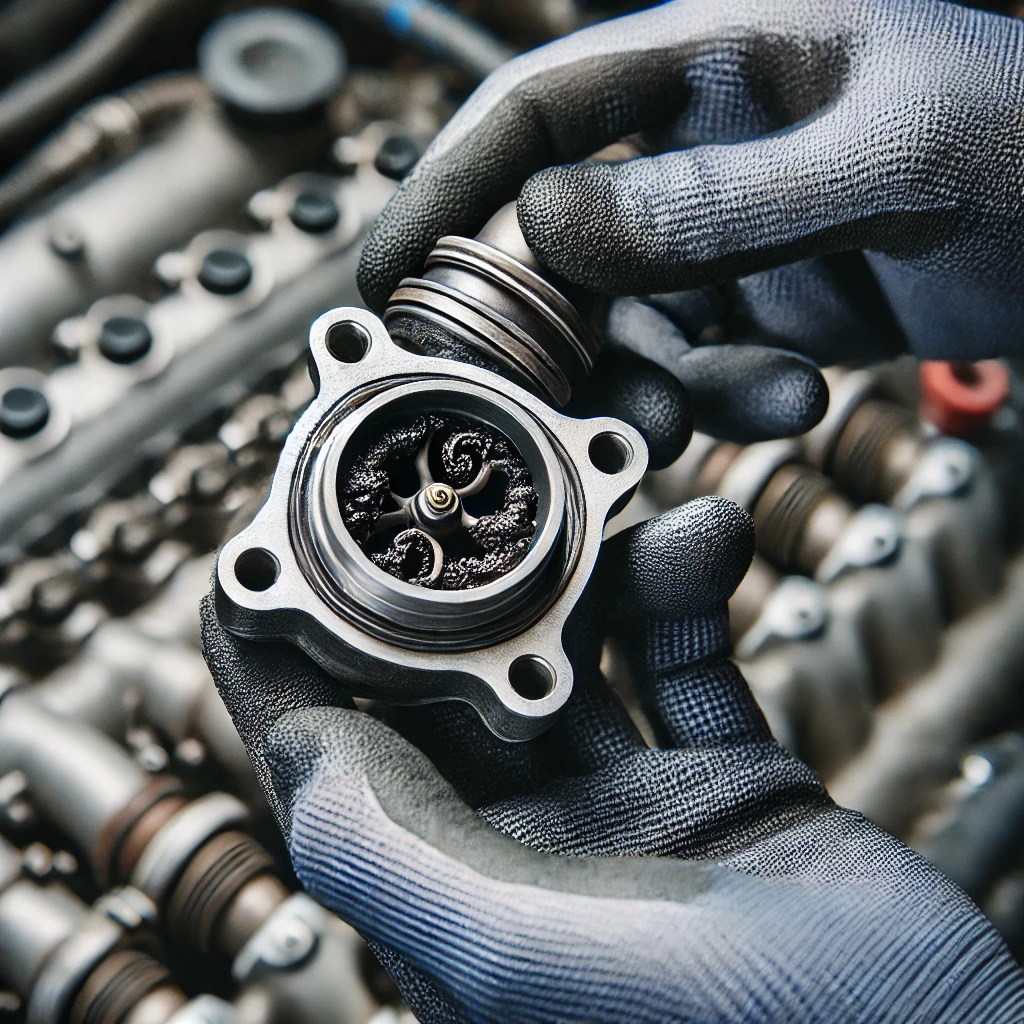

Remove and visually inspect the valve for carbon buildup or mechanical issues. A clogged valve can be cleaned, but a severely damaged one will need replacement.

🔎 Step 3: Clean or Replace the EGR Valve
If the valve is clogged with carbon deposits, use a throttle body cleaner or EGR cleaner to remove the buildup. If cleaning doesn’t work, a replacement may be necessary.

🔎 Step 4: Check Vacuum and Electrical Connections
For vacuum-controlled EGR valves, ensure that vacuum hoses are intact. For electronic valves, inspect wiring and connectors for faults.

Preventative Maintenance Tips

To keep your EGR valve in optimal condition, follow these maintenance tips:

✔️ Use High-Quality Fuel – Premium fuel can help prevent carbon buildup inside the valve.
✔️ Regular Engine Tune-Ups – Keeping the engine in good condition reduces strain on the EGR system.
✔️ Periodic Cleaning – Cleaning the EGR valve every 30,000 to 50,000 miles helps prevent clogging.
✔️ Monitor Fuel and Exhaust System Health – A faulty catalytic converter or oxygen sensor can also affect EGR performance.

The cost of replacing an EGR valve varies depending on the vehicle make, model, and labor rates in your area. Here’s a breakdown of potential expenses:

1. Parts Cost:

  • Standard Vehicles: EGR valves typically range from $60 to $300. partsgeek.com
  • High-Performance or Specialty Vehicles: Prices can be higher due to specialized components.

2. Labor Costs:

  • Hourly Rates: Labor charges can vary widely, with some reports indicating rates around $127 per hour. thetruckersreport.com
  • Total Labor Time: Depending on the complexity, labor can take approximately 1.5 hours, but this can vary. clickmechanic.com

3. Total Replacement Cost:

  • Average Vehicles: The overall cost, including parts and labor, typically ranges between $172 and $199. repairpal.com
  • Specialty Vehicles: For certain models, especially those with more complex systems, costs can escalate significantly. For instance, a Cummins ISL engine’s EGR valve replacement was quoted at $5,000. irv2.com

Factors Influencing Cost:

  • Vehicle Type: Luxury or performance vehicles often have higher parts and labor costs.
  • Labor Rates: Geographical location and dealership vs. independent mechanic rates can affect pricing.
  • Additional Repairs: A faulty EGR valve can lead to other issues, potentially increasing repair costs.

For precise pricing, it’s advisable to consult with a trusted mechanic or dealership familiar with your specific vehicle.

Conclusion

The EGR valve is a crucial part of your car’s emissions control system, helping to reduce pollution, improve fuel efficiency, and protect engine components. Recognizing the signs of a failing EGR valve, such as rough idling, poor fuel economy, and the Check Engine Light, can help you take action before serious engine damage occurs.

For expert mechanic tips, repair guides, and troubleshooting advice, visit www.onlymechanic.com. Stay informed and keep your vehicle running smoothly! 🚗🔧
